장착된 베어링 및 하우징

장착형 베어링 및 하우징은 다양한 기계 시스템에서 회전 샤프트를 안정적으로 지지하는 것을 목표로 베어링과 하우징을 결합한 통합 장치입니다. 물류, 제조, 농업 등의 분야에서 광범위하게 활용됩니다. 다양한 설치 요구 사항을 수용하기 위해 BMT는 다양한 하우징 유형을 제공합니다. 베어링과 하우징이 결합되어 반경방향 및 산발적인 축방향 하중을 효율적으로 관리합니다.

문의 보내기

제품 설명

이 제품의 구성 요소

장착형 베어링 및 하우징에는 일반적으로 베어링(예: 볼, 롤러 또는 구형 베어링), 베어링을 둘러싸서 지지하는 하우징, 베이스, 플랜지 또는 스터드와 같은 장착 기능이 포함됩니다. 하우징은 일반적으로 견고성과 환경 요인에 대한 저항성을 위해 선택된 주철, 연성 철 또는 때로는 스테인레스강으로 만들어집니다.

내부 베어링은 하우징에 사전 장착되어 있어 적절한 정렬을 보장하고 현장 조정의 필요성을 줄입니다. 먼지, 습기 또는 잔해물이 있는 상황에서 여러 모델에는 베어링을 불순물로부터 보호하기 위한 씰 또는 실드가 있습니다. 실제 조사 결과를 바탕으로 한 이 통합 설계는 설치를 더 쉽게 만들고 장기적으로 신뢰할 수 있는 성능에 기여합니다.

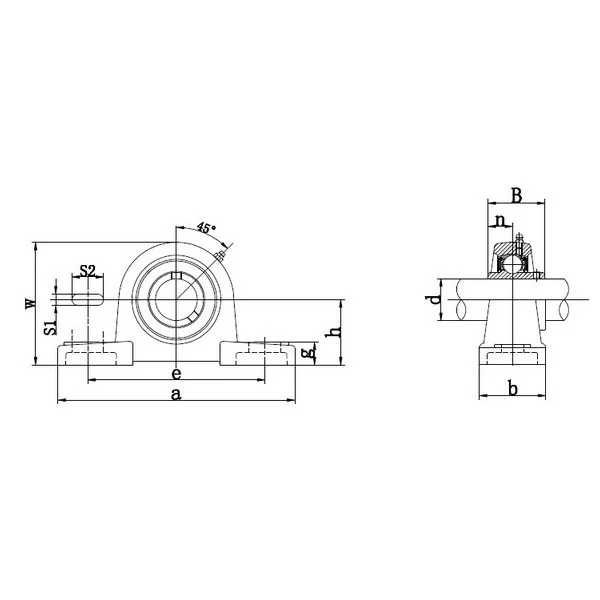

Mounted Bearings And Housings

기술적인 매개변수

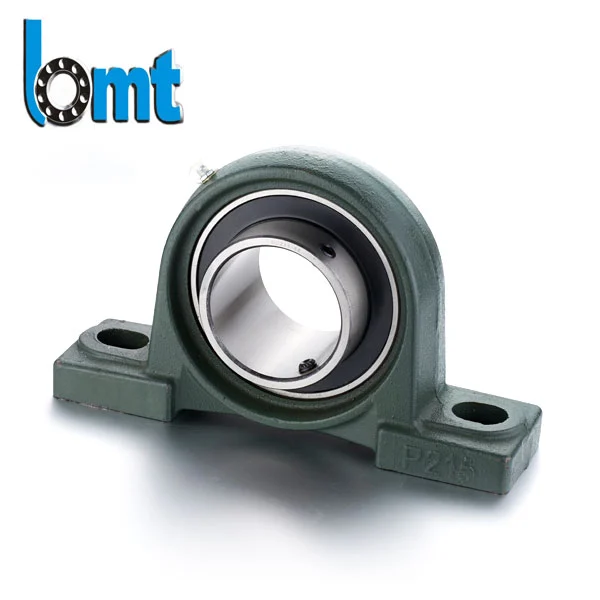

필로우 블록: UCP200, 300
단위 번호.	축 직경 d	치수(mm)										볼트크기mminch	베어링번호	주택번호
단위 번호.	mm	h	a	e	b	S1	S2	g	w	B	n	볼트크기mminch	베어링번호	주택번호
UCP201	12	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC201	P203
UCP201-8		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC201-8	P203
UCP202	15	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC202	P203
UCP202-9		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC202-9	P203
UCP202-10		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC202-10	P203
UCP203	17	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC203	P203
UCP203-11		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC203-11	P203
UCP204	20	33.3	127	95	38	13	19	14	64	31	12.7	M10	UC204	P204
UCP204-12		33.3	127	95	38	13	19	14	64	31	12.7	3/8	UC204-12	P204
UCP205	25	36.5	140	105	38	13	19	15	70	34	14.3	M10	UC205	P205
UCP205-13		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-13	P205
UCP205-14		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-14	P205
UCP205-15		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-15	P205
UCP205-16		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-16	P205
UCP206	30	42.9	165	121	48	17	20	17	82	38.1	15.9	M14	UC206	P206
UCP206-17		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-17	P206
UCP206-18		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-18	P206
UCP206-19		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-19	P206
UCP206-20		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-20	P206
UCP207	35	47.6	167	127	48	17	21	18	93	42.9	17.5	M14	UC207	P207
UCP207-20		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-20	P207
UCP207-21		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-21	P207
UCP207-22		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-22	P207
UCP207-23		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-23	P207
UCP208	40	49.2	184	137	54	17	21	18	98	49.2	19	M14	UC208	P208
UCP208-24		49.2	184	137	54	17	21	18	98	49.2	19	1/2	UC208-24	P208
UCP208-25		49.2	184	137	54	17	21	18	98	49.2	19	1/2	UC208-25	P208
UCP209	45	54	190	146	54	17	21	20	106	49.2	19	M14	UC209	P209
UCP209-26		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-26	P209
UCP209-27		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-27	P209
UCP209-28		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-28	P209
UCP210	50	57.2	206	159	60	20	25	21	113	51.6	19	M16	UC210	P210
UCP210-29		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-29	P210
UCP210-30		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-30	P210
UCP210-31		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-31	P210
UCP210-32		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-32	P210
UCP211	55	63.5	219	171	60	20	25	23	124	55.6	22.2	M16	UC211	P211
UCP211-32		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-32	P211
UCP211-33		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-33	P211
UCP211-34		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-34	P211
UCP211-35		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-35	P211
UCP212	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	P212
UCP212-36		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	P212
UCP212-37		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-37	P212
UCP212-38		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	P212
UCP212-39		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	P212
UCP213	65	76.2	265	203	70	25	30	27	151	65.1	25.4	M20	UC213	P213
UCP213-40		76.2	265	203	70	25	30	27	151	65.1		3/4	UC213-40	P213
UCP213-41		76.2	265	203	70	25	30	27	151	65.1		3/4	UC213-41	P213
UCP214	70	79.4	266	210	72	25	30	27	155	74.6	30.2	M20	UC214	P214
UCP214-42		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-42	P214
UCP214-43		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-43	P214
UCP214-44		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-44	P214
UCP215	75	82.6	275	217	74	25	30	28	162	77.8	33.3	M20	UC215	P215
UCP215-45		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-45	P215
UCP215-46		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-46	P215
UCP215-47		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-47	P215
UCP215-48		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-48	P215
UCP216	80	88.9	292	232	78	25	30	30	174	82.6	33.3	M20	UC216	P216
UCP216-49		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-49	P216
UCP216-50		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-50	P216
UCP216-51		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-51	P216
UCP217	85	95.2	310	247	83	25	30	32	185	85.7	34.1	M20	UC217	P217
UCP217-52		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-52	P217
UCP217-53		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-53	P217
UCP217-55		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-55	P217
UCP218	90	101.6	327	262	88	27	33	33	198	96	39.7	M22	UC218	P218
UCP218-56		101.6	327	262	88	27	33	33	198	96	39.7	7/8	UC218-56	P218
UCP305	25	45	175	132	45	17	20	15	85	38	15	M14	UC305	P305
UCP305-14		45	175	132	45	17	20	15	85	38	15	1/2	UC305-14	P305
UCP305-15		45	175	132	45	17	20	15	85	38	15	1/2	UC305-15	P305
UCP305-16		45	175	132	45	17	20	15	85	38	15	1/2	UC305-16	P305
CP306	30	50	180	140	50	17	20	18	95	43	17	M14	C306	P306
CP306-18		50	180	140	50	17	20	18	95	43	17	1/2	UC306-18	P306
CP306-19		50	180	140	50	17	20	18	95	43	17	1/2	UC306-19	P306
UCP307	35	56	210	160	56	17	25	20	106	48	19	M14	UC307	P307
UCP307-20		56	210	160	56	17	25	20	106	48	19	1/2	UC307-20	P307
UCP307-21		56	210	160	56	17	25	20	106	48	19	1/2	UC307-21	P307
UCP307-22		56	210	160	56	17	25	20	106	48	19	1/2	UC307-22	P307
UCP307-23		56	210	160	56	17	25	20	106	48	19	1/2	UC307-23	P307
UCP308	40	60	220	170	60	17	27	22	116	52	19	M14	C308	P308
UCP308-24		60	220	170	60	17	27	22	116	52	19	1/2	UC308-24	P308
UCP308-25		60	220	170	60	17	27	22	116	52	19	1/2	UC308-25	P308
UCP309	45	67	245	190	67	20	30	24	129	57	22	M16	UC309	P309
UCP309-26		67	245	190	67	20	30	24	129	57	22	5/8	UC309-26	P309
UCP309-27		67	245	190	67	20	30	24	129	57	22	5/8	UC309-27	P309
UCP309-28		67	245	190	67	20	30	24	129	57	22	5/8	UC309-28	P309
UCP310	50	75	275	212	75	20	35	27	143	61	22	M16	UC310	P310
UCP310-30		75	275	212	75	20	35	27	143	61	22	5/8	UC310-30	P310
UCP310-31		75	275	212	75	20	35	27	143	61	22	5/8	UC310-31	P310
UCP311	55	80	310	236	80	20	38	30	154	66	25	M16	UC311	P311
UCP311-32		80	310	236	80	20	38	30	154	66	25	5/8	UC311-32	P311
UCP311-34		80	310	236	80	20	38	30	154	66	25	5/8	UC311-34	P311
UCP311-35		80	310	236	80	20	38	30	154	66	25	5/8	UC311-35	P311
UCP312	60	85	330	250	85	25	38	32	165	71	26	M20	UC312	P312
UCP312-36		85	330	250	85	25	38	32	165	71	26	3/4	UC312-36	P312
UCP312-38		85	330	250	85	25	38	32	165	71	26	3/4	UC312-38	P312
UCP312-39		85	330	250	85	25	38	32	165	71	26	3/4	UC312-39	P312
UCP313	65	90	340	260	90	25	38	33	176	75	30	M20	UC313	P313
UCP313-40		90	340	260	90	25	38	33	176	75	30	3/4	UC313-40	P313
UCP314	70	95	360	280	90	27	40	35	187	78	33	M22	UC314	P314
UCP314-44		95	360	280	90	27	40	35	187	78	33	7/8	UC314-44	P314
UCP315	75	100	380	290	100	27	40	35	198	82	32	M22	UC315	P315
UCP315-48		100	380	290	100	27	40	35	198	82	32	7/8	UC315-48	P315
UCP316	80	106	400	300	110	27	40	40	210	86	34	M22	UC315	P316
UCP316-50		106	400	300	110	27	40	40	210	86	34	7/8	UC316-50	P316
UCP317	85	112	420	320	110	33	45	40	220	96	40	M27	UC317	P317
UCP317-52		112	420	320	110	33	45	40	220	96	40	1	UC317-52	P317
UCP318	90	118	430	330	110	33	45	45	235	96	40	M27	UC318	P318
UCP318-56		118	430	330	110	33	45	45	235	96	40	1	UC318-56	P318
UCP319	95	125	470	360	120	36	50	45	250	103	41	M30	UC319	P319
UCP319-60		125	470	360	120	36	50	45	250	103	41	2001/1/8	UC319-60	P319
UCP320	100	140	490	380	120	36	50	50	275	108	42	M30	UC320	P320
UCP320-64		140	490	380	120	36	50	50	275	108	42	2001/1/8	UC320-64	P320
UCP321		140	490	380	120	36	50	50	280	112	44	M30	UC321	P321
UCP322		150	520	400	140	40	55	55	300	117	46	M33	UC322	P322
UCP324		160	570	450	140	40	55	65	320	126	51	M33	UC324	P324
UCP326		180	600	480	140	40	55	75	355	135	54	M33	UC326	P326
UCP328		200	620	500	140	40	55	75	390	145	59	M33	UC328	P328

필로우 블록: UCPE, UCPX, UCPH
유닛 N0.	축 직경 d	치수0ns(mm)										B0lt크기mminch	베어링 N0.	H0는 N0을 사용합니다.
유닛 N0.	mm	h	a	e	b	S1	S2	g	w	비	n	B0lt크기mminch	베어링 N0.	H0는 N0을 사용합니다.
UCPE201	12	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC201	PE204
UCPE201-8		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC201-8	PE204
UCPE202	15	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC202	PE204
UCPE202-9		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-9	PE204
UCPE202-10		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-10	PE204
UCPE203	17	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC203	PE204
UCPE203-11		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC203-11	PE204
UCPE204	20	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC204	PE204
UCPE204-12		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC204-12	PE204
UCPE205	25	36.5	140	105	38	13	16	16	70	34.1	14.3	M10	UC205	PE205
UCPE205-13		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-13	PE205
UCPE205-14		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-14	PE205
UCPE205-15		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-15	PE205
UCPE205-16		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-16	PE205
UCPE206	30	42.9	165	121	48	17	21	18	83	38.1	15.9	M14	UC206	PE206
UCPE206-17		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-17	PE206
UCPE206-18		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-18	PE206
UCPE206-19		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-19	PE206
UCPE206-20		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-20	PE206
UCPE207	35	47.6	167	127	48	17	21	19	94	42.9	17.5	M14	UC207	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-20	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-21	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-22	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-23	PE207
UCPE208	40	49.2	184	137	54	17	25	19	100	49.2	19	M14	UC208	PE208
UCPE208-24		49.2	184	137	54	17	25	19	100	49.2	19	1/2	UC208-24	PE208
UCPE208-25		49.2	184	137	54	17	25	19	100	49.2	19	1/2	UC208-25	PE208
UCPE209	45	54	190	146	54	17	25	20	108	49.2	19	M14	UC209	PE209
UCPE209-26		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-26	PE209
UCPE209-27		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-27	PE209
UCPE209-28		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-28	PE209
UCPE210	50	57.2	206	159	60	20	25	22	114	51.6	19	M16	UC210	PE210
UCPE210-29		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-29	PE210
UCPE210-30		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-30	PE210
UCPE210-31		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-31	PE210
UCPE210-32		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-32	PE210
UCPE211	55	63.5	219	171	60	20	25	22	126	55.6	22.2	M16	UC211	PE211
UCPE211-32		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-32	PE211
UCPE211-33		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-33	PE211
UCPE211-34		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-34	PE211
UCPE211-35		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-35	PE211
UCPE212	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	PE212
UCPE212-36		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	PE212
UCPE212-37		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-37	PE212
UCPE212-38		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	PE212
UCPE212-39		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	PE212
UCPE213	65	76.2	265	203	70	25	29	27	150	65.1	25.4	M20	UC213	PE213
UCPE213-40		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-40	PE213
UCPE213-41		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-41	PE213
UCPE214	70	79.4	266	210	72	25	31	27	156	74.6	30.2	M20	UC214	PE214
UCPE214-42		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-42	PE214
UCPE214-43		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-43	PE214
UCPE214-44		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-44	PE214
UCPE215	75	82.6	275	217	74	25	31	28	163	77.8	33.3	M20	UC215	PE215
UCPE215-45		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-45	PE215
UCPE215-46		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-46	PE215
UCPE215-47		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-47	PE215
UCPE215-48		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-48	PE215
UCPE216	80	88.9	292	232	78	25	31	30	175	82.6	33.3	M20	UC216	PE216
UCPE216-49		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-49	PE216
UCPE216-50		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-50	PE216
UCPE216-51		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-51	PE216
UCPE217	85	95.2	310	247	83	25	31	32	186	85.7	34.1	M20	UC217	PE217
UCPE217-52		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-52	PE217
UCPE217-53		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-53	PE217
UCPE217-55		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-55	PE217
UCPE218	90	101.6	327	262	88	27	33	33	198	96	39.7	M22	UC218	PE218
UCPE218-56		101.6	327	262	88	27	33	33	198	96	39.7	7/8	UC218-56	PE218
UCPX05	25	44.4	159	119	51	17	25	18	85	38.1	15.9	M14	UCX05	PX05
UCPX05-16		44.4	159	119	51	17	25	18	85	38.1	15.9	1/2	UCX05-16	PX05
UCPX06	30	47.6	175	127	57	17	25	20	94	42.9	17.5	M14	UCX06	PX06
UCPX06-19		47.6	175	127	57	17	25	20	94	42.9	17.5	1/2	UCX06-19	PX06
UCPX06-20		47.6	175	127	57	17	25	20	94	42.9	17.5	1/2	UCX06-20	PX06
UCPX07	35	54	203	144	57	17	30	22	105	49.2	19	M14	UCX07	PX07
UCPX07-22		54	203	144	57	17	30	22	105	49.2	19	1/2	UCX07-22	PX07
UCPX07-23		54	203	144	57	17	30	22	105	49.2	19	1/2	UCX07-23	PX07
UCPX08	40	58.7	222	156	67	20	32	26	113	49.2	19	M16	UCX08	PX08
UCPX08-24 UCPX08	2001/1/2	58.7	222	156	67	20	32	26	113	49.2	19	5/8	UCX08-24	PX08
UCPX09	45	58.7	222	156	67	20	33	26	116	51.6	19	M16	UCX09	PX09
UCPX09-26		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-26	PX09
UCPX09-27		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-27	PX09
UCPX09-28		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-28	PX09
UCPX10	50	63.5	241	171	73	20	36	27	126	55.6	22.2	M16	UCX10	PX10
UCPX10-31		63.5	241	171	73	20	36	27	126	55.6	22.2	5/8	UCX10-31	PX10
UCPX10-32		63.5	241	171	73	20	36	27	126	55.6	22.2	5/8	UCX10-32	PX10
UCPX11	55	69.8	260	184	79	25	36	30	139	65.1	25.4	M20	UCX11	PX11
UCPX11-35		69.8	260	184	79	25	36	30	139	65.1	25.4	3/4	UCX11-35	PX11
UCPX12	60	76.2	286	203	83	25	41	32	151	65.1	25.4	M20	UCX12	PX12
UCPX12-38		76.2	286	203	83	25	41	32	151	65.1	25.4	3/4	UCX12-38	PX12
UCPX12-39		76.2	286	203	83	25	41	32	151	65.1	25.4	3/4	UCX12-39	PX12
UCPX13	65	76.2	286	203	83	25	41	32	154	74.6	30.2	M20	UCX13	PX13
UCPX13-40		76.2	286	203	83	25	41	32	154	74.6	30.2	3/4	UCX13-40	PX13
UCPX14	70	88.9	330	229	89	27	51	35	172	77.8	33.3	M22	UCX14	PX14
UCPX14-44		88.9	330	229	89	27	51	35	172	77.8	33.3	7/8	UCX14-44	PX14
UCPX15		88.9	330	229	89	27	51	35	177	82.6	33.3	M22	UCX15	PX15
UCPX15-47		88.9	330	229	89	27	51	35	177	82.6	33.3	7/8	UCX15-47	PX15
UCPX15-48		88.9	330	229	89	27	51	35	177	82.6	33.3	7/8	UCX15-48	PX15
UCPX16	80	101.6	381	283	102	27	59	42	197	85.7	34.1	M22	UCX16	PX16
UCPX16-50		101.6	381	283	102	27	59	42	197	85.7	34.1	7/8	UCX16-50	PX16
UCPX17	85	101.6	381	283	102	27	59	42	202	96	39.7	M22	UCX17	PX17
UCPX17-52		101.6	381	283	102	27	59	42	202	96	39.7	7/8	UCX17-52	PX17
UCPX18	90	101.6	381	283	111	27	60	45	206	104	42.9	M22	UCX18	PX18
UCPX18-56		101.6	381	283	111	27	60	45	206	104	42.9	7/8	UCX18-56	PX18
UCPX20	100	127	432	337	121	33	64	52	250	117.5	49.2	M30	UCX20	PX20
UCPX20-63		127	432	337	121	33	64	52	250	117.5	49.2	2001/1/8	UCX20-63	PX20
UCPX20-64		127	432	337	121	33	64	52	250	117.5	49.2	2001/1/8	UCX20-64	PX20
UCPH201	12	70	127	95	40	13	19	15	101	31	12.7	M10	UC201	PH204
UCPH202	15	70	127	95	40	13	19	15	101	31	12.7	M10	UC202	PH204
UCPH203	17	70	127	95	40	13	19	15	101	31	12.7	M10	UC203	PH204
UCPH204	20	70	127	95	40	13	19	15	101	31	12.7	M10	UC204	PH204
UCPH201-8		70	127	95	40	13	19	15	101	31	12.7	3/8	UC201-8	PH204
UCPH202-9		70	127	95	40	13	19	15	101	31	12.7	3/8	UC202-9	PH204
UCPH202-10		70	127	95	40	13	19	15	101	31	12.7	3/8	UC202-10	PH204
UCPH203-11		70	127	95	40	13	19	15	101	31	12.7	3/8	UC203-11	PH204
UCPH204-12		70	127	95	40	13	19	15	101	31	12.7	3/8	UC204-12	PH204
UCPH205	25	80	140	105	50	13	19	16	114	34	14.3	M10	UC205	PH205
UCPH205-13		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-13	PH205
UCPH205-14		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-14	PH205
UCPH205-15		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-15	PH205
UCPH205-16		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-16	PH205
UCPH206	30	90	165	121	50	17	21	18	130	38.1	15.9	M14	UC206	PH206
UCPH206-17		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-17	PH206
UCPH206-18		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-18	PH206
UCPH206-19		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-19	PH206
UCPH206-20		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-20	PH206
UCPH207	35	95	167	127	60	17	21	19	140	42.9	17.5	M14	UC207	PH207
UCPH207-20		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-20	PH207
UCPH207-21		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-21	PH207
UCPH207-22		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-22	PH207
UCPH207-23		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-23	PH207
UCPH208	40	100	184	137	70	17	25	19	149	49.2	19	M14	UC208	PH208
UCPH208-24		100	184	137	70	17	25	19	149	49.2	19	1/2	UC208-24	PH208
UCPH208-25		100	184	137	70	17	25	19	149	49.2	19	1/2	UC208-25	PH208
UCPH209	45	105	190	146	70	17	25	20	157	49.2	19	M14	UC209	PH209
UCPH209-26		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-26	PH209
UCPH209-27		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-27	PH209
UCPH209-28		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-28	PH209
UCPH210	50	110	206	159	70	20	25	22	165	51.6	19	M16	UC210	PH210
UCPH210-29		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-29	PH210
UCPH210-30		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-30	PH210
UCPH210-31		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-31	PH210
UCPH210-32		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-32	PH210
UCPH211	55	120	219	171	75	19	22	22	181	55.6	22.2	M16	UC211	PH211
UCPH211-32		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-32	PH211
UCPH211-33		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-33	PH211
UCPH211-34		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-34	PH211
UCPH211-35		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-35	PH211
UCPH212	60	130	235	184	85	19	23	25	197	65.1	25.4	M16	UC212	PH212
UCPH212-36		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-36	PH212
UCPH212-37		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-37	PH212
UCPH212-38		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-38	PH212
UCPH212-39		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-39	PH212
UCPH213	65	140	262	203	95	23	28	27	212	65.1	25.4	M20	UC213	PH213
UCPH213-40		140	262	203	95	23	28	27	212	65.1	25.4	3/4	UC213-40	PH213
UCPH213-41		140	262	203	95	23	28	27	212	65.1	25.4	3/4	UC213-41	PH213
UCPH214	70	150	268	210	105	23	28	28	225	74.6	30.2	M20	UC214	PH214
UCPH214-42		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-42	PH214
UCPH214-43		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-43	PH214
UCPH214-44		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-44	PH214
UCPH215	75	160	275	217	115	23	28	29	238	77.8	33.3	M20	UC215	PH215
UCPH215-45		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-45	PH215
UCPH215-46		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-46	PH215
UCPH215-47		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-47	PH215
UCPH215-48		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-48	PH215
UCPH216	80	170	290	232	125	23	28	30	253	82.6	33.3	M20	UC216	PH216
UCPH216-50		170	290	232	125	23	28	30	253	82.6	33.3	3/4	UC216-50	PH216

베개 블록:UCPA, UCPG, UCPW
단위 번호.	축 직경 d	치수(mm)										볼트 크기 mm	베어링 번호	주택번호
단위 번호.	mm	h	a	e	b	S	g	l	w	B	n		베어링 번호	주택번호
UCPA201	12	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC201	PA204
UCPA201-8		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC201-8	PA204
UCPA202	15	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202	PA204
UCPA202-9		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202-9	PA204
UCPA202-10		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202-10	PA204
UCPA203	17	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC203	PA204
UCPA203-11		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC203-11	PA204
UCPA204	20	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC204	PA204
UCPA204-12		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC204-12	PA204
UCPA205	25	36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205	PA205
UCPA205-13		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-13	PA205
UCPA205-14		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-14	PA205
UCPA205-15		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-15	PA205
UCPA205-16		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-16	PA205
UCPA206	30	42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206	PA206
UCPA206-17		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-17	PA206
UCPA206-18		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-18	PA206
UCPA206-19		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-19	PA206
UCPA206-20		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-20	PA206
UCPA207	35	47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207	PA207
UCPA207-20		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-20	PA207
UCPA207-21		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-21	PA207
UCPA207-22		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-22	PA207
UCPA207-23		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-23	PA207
UCPA208	40	49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208	PA208
UCPA208-24		49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208-24	PA208
UCPA208-25		49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208-25	PA208
UCPA209	45	54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209	PA209
UCPA209-26		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-26	PA209
UCPA209-27		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-27	PA209
UCPA209-28		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-28	PA209
UCPA210	50	57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210	PA210
UCPA210-29		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-29	PA210
UCPA210-30		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-30	PA210
UCPA210-31		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-31	PA210
UCPA210-32		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-32	PA210
UCPA211	55	63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211	PA211
UCPA211-32		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-32	PA211
UCPA211-33		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-33	PA211
UCPA211-34		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-34	PA211
UCPA211-35		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-35	PA211
UCPA212	60	69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212	PA212
UCPA212-36		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-36	PA212
UCPA212-37		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-37	PA212
UCPA212-38		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-38	PA212
UCPA212-39		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-39	PA212
UCPA213	65	76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213	PA213
UCPA213-40		76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213-40	PA213
UCPA213-41		76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213-41	PA213
UCPG201	12	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW201	PG203
UCPG202	15	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202	PG203
UCPG203	17	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW203	PG203
UCPG201-8		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW201-8	PG203
UCPG202-9		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202-9	PG203
UCPG202-10		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202-10	PG203
UCPG203-11		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW203-11	PG203
UCPG201	12	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC201	PG204
UCPG202	15	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202	PG204
UCPG203	17	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC203	PG204
UCPG204	20	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC204	PG204
UCPG201-8		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC201-8	PG204
UCPG202-9		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202-9	PG204
UCPG202-10		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202-10	PG204
UCPG203-11		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC203-11	PG204
UCPG204-12		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC204-12	PG204
UCPG205	25	36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205	PG205
UCPG205-13		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-13	PG205
UCPG205-14		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-14	PG205
UCPG205-15		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-15	PG205
UCPG205-16		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-16	PG205
UCPG206	30	42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206	PG206
UCPG206-17		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-17	PG206
UCPG206-18		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-18	PG206
UCPG206-19		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-19	PG206
UCPG206-20		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-20	PG206
UCPG207	35	47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207	PG207
UCPG207-20		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-20	PG207
UCPG207-21		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-21	PG207
UCPG207-22		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-22	PG207
UCPG207-23		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-23	PG207
UCPG208	40	49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208	PG208
UCPG208-24		49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208-24	PG208
UCPG208-25		49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208-25	PG208
UCPG209	45	53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209	PG209
UCPG209-26		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-26	PG209
UCPG209-27		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-27	PG209
UCPG209-28		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-28	PG209
UCPG210	50	57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210	PG210
UCPG210-29		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-29	PG210
UCPG210-30		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-30	PG210
UCPG210-31		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-31	PG210
UCPG210-32		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-32	PG210
UCPG211	55	63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211	PG211
UCPG211-32		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-32	PG211
UCPG211-33		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-33	PG211
UCPG211-34		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-34	PG211
UCPG211-35		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-35	PG211
UCPG212	60												UC212	PG212
UCPG212-36		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-36	PG212
UCPG212-37		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-37	PG212
UCPG212-38		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-38	PG212
UCPG212-39		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-39	PG212
CPW201	12	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC201	PW204
UCPW202	15	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202	PW204
UCPW203	17	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC203	PW204
CPW204	20	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC204	PW204
CPW201-8		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC201-8	PW204
UCPW202-9		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202-9	PW204
UCPW202-10		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202-10	PW204
UCPW203-11		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC203-11	PW204
CPW204-12		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC204-12	PW204
UCPW205	25	36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205	PW205
UCPW205-13		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-13	PW205
UCPW205-14		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-14	PW205
UCPW205-15		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-15	PW205
UCPW205-16		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-16	PW205
UCPW206	30	42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206	PW206
UCPW206-17		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-17	PW206
UCPW206-18		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-18	PW206
UCPW206-19		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-19	PW206
UCPW206-20		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-20	PW206
UCPW207	35	47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207	PW207
UCPW207-20		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-20	PW207
UCPW207-21		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-21	PW207
UCPW207-22		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-22	PW207
UCPW207-23		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-23	PW207
UCPW208	40	49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208	PW208
UCPW208-24		49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208-24	PW208
UCPW208-25		49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208-25	PW208
UCPW209	45	53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209	PW209
UCPW209-26		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-26	PW209
UCPW209-27		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-27	PW209
UCPW209-28		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-28	PW209
UCPW210	50	57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210	PW210
UCPW210-29		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-29	PW210
UCPW210-30		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-30	PW210
UCPW210-31		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-31	PW210
UCPW210-32		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-32	PW210

베개 블록:UCHA
단위 번호	샤프트 직경	치수(mm)										무게
	d	L	에게	H	A	M(인치)	F	C	A1	B	S	(kg)
	(mm)	L	에게	H	A	M(인치)	F	C	A1	B	S	(kg)
UCHA204	20	64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA204-12		64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA205	25	78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-14		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-15		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-16		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA206	30	78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-17		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-18		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-19		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-20		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA207	35	92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-20		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-21		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-22		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-23		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
EAR208	40	100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-24		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-25		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA209	45	108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-26		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-27		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-28		108	136	82	48	G1	21	5	35	49.2	19	1.78
EAR210	50	119	142	83	48	G1	21	5	37	51.6	19	1.93
EAR210-30		119	142	83	48	G1	21	5	37	51.6	19	1.93
EAR210-31		119	142	83	48	G1	21	5	37	51.6	19	1.93
EAR210-32		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA211	55	126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-32		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-34		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-35		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA212	60	142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-36		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-38		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-39		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9

어떤 이점을 제공합니까?

•간단한 설치: 장착된 베어링과 하우징이 바로 설치되어 제공되므로 별도의 베어링 장착 및 하우징 정렬이 필요하지 않습니다. 이러한 장치를 자주 사용하는 기술자가 지적한 것처럼 이렇게 하면 설정 시간이 절약됩니다.

•향상된 안정성: 하우징은 하중이 가해질 때 샤프트 편향을 최소화하는 견고한 구조를 제공합니다. 이는 농업 기계나 컨베이어 시스템과 같은 기계의 정확성을 유지하는 데 필수적입니다. 사용자들은 이러한 안정성이 보다 원활한 작동에 도움이 된다는 점을 자주 언급합니다.

•다양한 적응성: 다양한 하우징 스타일(예: 필로우 블록, 플랜지 또는 테이크업)을 갖춘 이 장치는 평평한 표면, 수직 프레임 또는 좁은 공간에 장착되는 등 다양한 설치 시나리오에 적합합니다. 이러한 다용성 덕분에 많은 엔지니어가 이 제품을 첫 번째로 선택합니다.

실제 사용 사례

• 제조 라인: 자동화된 조립 라인에서 장착형 베어링 및 하우징은 컨베이어 롤러를 지원하고 제품의 원활한 이동을 보장합니다. 제조 피드백에 따르면 안정적인 성능과 손쉬운 수리로 인해 이러한 장치는 가동 중지 시간이 감소했습니다.

•농업 장비: 곡물 엘리베이터에서 이 장치는 곡물의 무게와 실외 조건을 견디면서 엘리베이터 버킷의 회전 샤프트를 지지합니다. 한 농기구 공급업체는 밀폐형 설계가 먼지가 많은 환경에서 서비스 간격을 연장하는 데 도움이 되었다고 언급했습니다.

우리의 품질 중점

BMT에서는 장착형 베어링 및 하우징이 다양한 까다로운 조건에서 작동한다는 사실을 잘 알고 있으므로 품질이 핵심 초점입니다. 각 장치는 하우징 강도, 베어링 적합성 및 씰 효율성을 검사합니다. 이러한 검사는 제품이 해당 용도에서 일반적인 성능 요구 사항을 충족하는지 확인하기 위해 수행됩니다.

핫 태그: 장착된 베어링 및 하우징
